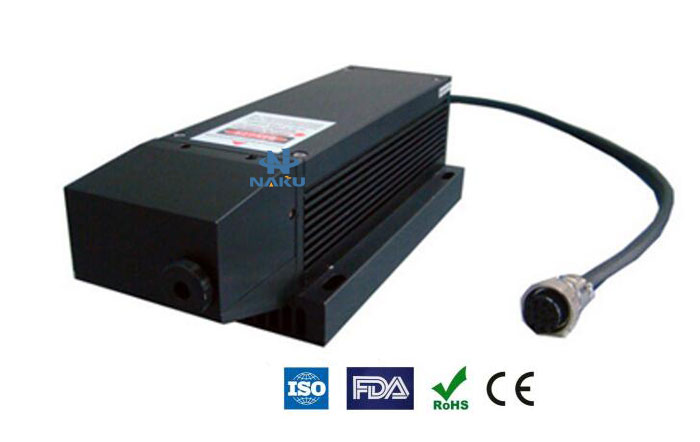

TEC Cooling System 261nm Ultraviolet Passively Q-switched Pulse Laser 0.1~4µJ/1~10mW
Features:
1.Single pulse energy up to 4 µJ
2.TEC cooling system
3.Lightweight, compact design
4.Superior beam quality
5.Controllable or Uncontrollable choosed
6.Best reliability and lifetime
7.261/523/1047 nm laser emitting together or 261 nm laser emitting only
Applications:
1.UV curving
2.Micro-electronics
3.CD carving
4.Laser medical treatment
5.Scientific experiment
Note:
1. This is a custom laser.
2. $100 is the deposit, not the final price of this laser.
3. Please contact us and tell us your all parameter reqirements,then we can offer you a quotation based on your needs.
SPECIFICATIONS:
| Product Name |
261nm ultraviolet passively Q-switched pulse laser |
| Model |
MPL-F-261 |
| Central wavelength (nm) |
261±1 |
| Output average power (mW) |
1~10 |
| Transverse mode |
Near TEM00 |
| Operating mode |
Frequency conversion of Q-switched pulsed laser |
| Single pulse energy (µJ) |
0.1~4 |
| Pulse duration (ns) |
~4 |
| Peak power (W) |
25-1000 |
| Rep. rate (kHz) |
FIXED |
Setting up one fixed rep. rate internal between 0.1Hz-1kHz with stable pulse energy, pulse duration and pulse period. |
| EXT TRIG |
0.1Hz-1kHz by external trigger with stable pulse energy, pulse duration and pulse period. |
| QCW |
QCW state with one rep. rate between2k-3kHz |
| Average power (mW) |
Average power (mW) = Single pulse energy (µJ) * Rep. rate (kHz) |
| Ave power stability (over 4 hours) |
<5%,<10% |
| M 2 factor |
<1.5 |
| Spectral purity |
>99% |
| Beam parameters |
Elliptical (4:1), Beam spot~2mm |
| Polarization ratio |
>50:1 |
| Warm-up time (minutes) |
<10 |
| Beam height from base plate (mm) |
45 |
| Operating temperature (℃) |
10~35 |

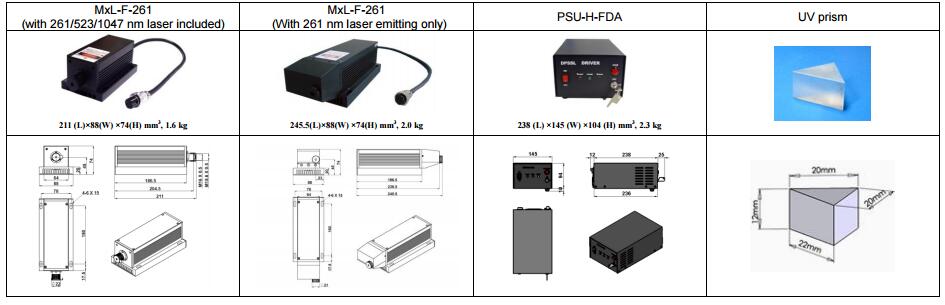

| Laser head (Choose) |
MPL-F-261 laser head with 261/523/1047 nm laser included |
| MPL-F-261 laser head with 261 nm laser emitting only |
| Power supply(90-264VAC) |
PSU-H-FDA |
| Cooling system |
TEC |
| Expected lifetime (hours) |
5000 |
| Warranty period |
1 year |
| Remarks |
Please Note: because of the Walk-off effect of Nonlinear crystals, the beam quality of UV laser is not so good as that of 1047/523nm laser. |
